Callback Function

Overview

The NERO AA Platform provides a custom callback function for Paymaster (gas fee sponsorship) decisions. This allows project developers to control free gas fee sponsorship based on their own business logic.

Architecture

Configuration

1. Project Policy Settings

Enable the callback function from the management console and configure the callback URL.

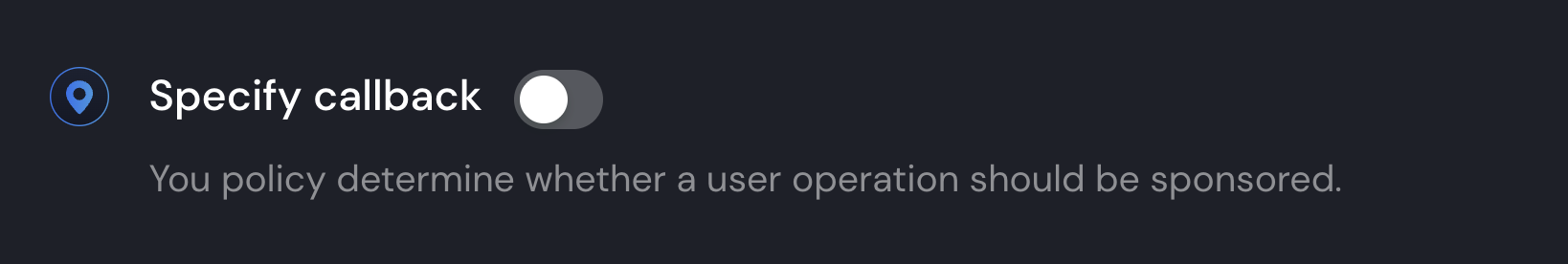

Figure 12: spacify callback

2. API Call

POST /v1/apiKey/policy/saveOrUpdate
{
  "projectId": 123,
  "policy": {
    "isCallback": true,
    "callbackUrl": "https://your-callback-server.com/paymaster/callback"
  }
}

Callback Protocol

Request Specification

• URL: Callback URL specified in project settings
• Method: POST
• Content-Type: application/json
• Timeout: 2 seconds

Headers

API-SIGNATURE: MD5 hash signature
Content-Type: application/json

Request Body

{
  "sender": "0x1234...",
  "nonce": "0x1",
  "initCode": "0x",
  "callData": "0x...",
  "callGasLimit": "0x5208",
  "verificationGasLimit": "0x5208",
  "preVerificationGas": "0x5208",
  "maxFeePerGas": "0x3b9aca00",
  "maxPriorityFeePerGas": "0x3b9aca00",
  "paymasterAndData": "0x",
  "signature": "0x..."
}

Signature Verification

The signature is generated through the following steps:

1. Sort request body keys in dictionary order
2. Concatenate in key + value format
3. Append the project’s callbackKey at the end
4. Calculate MD5 hash

Response Specification

{
  "status": 1 // 1: PASS, 2: NOT_PASS, 3: LIMITED
}

Status Values

Sample Implementation

Below is an example callback server implementation:

import { Hono } from "hono";
import { serve } from "@hono/node-server";

interface PaymasterSupportedToken {
  sender: string;
  nonce: string;
  initCode: string;
  callData: string;
  callGasLimit: string;
  verificationGasLimit: string;
  preVerificationGas: string;
  maxFeePerGas: string;
  maxPriorityFeePerGas: string;
  paymasterAndData: string;
  signature: string;
}

interface PaymasterRule {
  is_sponsored: boolean;
  is_blocked: boolean;
}

const paymasterRules: Map<string, PaymasterRule> = new Map([
  [
    "0x123456789abcdefghijk123456789abcdefghijk".toLowerCase(),
    { is_sponsored: true, is_blocked: false },
  ],
  // Add other address rules
]);

// Business logic evaluation function
function evaluateFreeGasEligibility(sender: string): number {
  const senderLower = sender.toLowerCase();
  const rule = paymasterRules.get(senderLower);
  if (!rule) {
    console.warn("Sender address not found in rules:", sender);
    return 2; // NOT_PASS - Reject addresses not in rules
  }
  // default: block paymaster support
  let supportStatus = 2;
  if ([rule.is](http://rule.is)_sponsored && ![rule.is](http://rule.is)_blocked) {
    supportStatus = 1; // PASS
  }
  return supportStatus;
}

Operation Flow

1. User submits UserOperation
   • Request sent from frontend to NERO AA Platform
2. Platform initiates decision process
   • Check project Policy
   • Execute callback if isCallback=true and callbackUrl is configured
3. Send callback request
   • Send UserOperation information in JSON format
   • Verify signature with API-SIGNATURE header
4. Execute business logic on custom server
   • Check address whitelist
   • Verify usage limits
   • Other custom validations
5. Process response
   • Make Paymaster decision based on status
   • Execute or deny gas fee sponsorship

Error Handling

Callback Server Errors

• Timeout (2 seconds)
  • Fallback to other decision logic (confDiscount, isAll)
• Network errors
  • Throw PlatformException and output error logs
• Invalid response
  • “callback status is not valid” error

Best Practices

1. Fast Response
   • Return response within 2 seconds
   • Execute heavy processing asynchronously
2. Redundancy
   • Configure load balancer with multiple server instances
   • Minimize downtime
3. Security
   • Implement mandatory signature verification
   • Enforce HTTPS communication
4. Log Management
   • Keep logs of decision results
   • Use as audit trail
5. Fallback
   • Prepare alternative logic for callback failures
   • Emergency manual override function

Limitations

• Callback URL: Maximum 200 characters
• Request timeout: Fixed at 2 seconds
• Signature algorithm: MD5 fixed
• Protocol: HTTPS recommended (HTTP allowed)
• Concurrency: One callback URL per project
